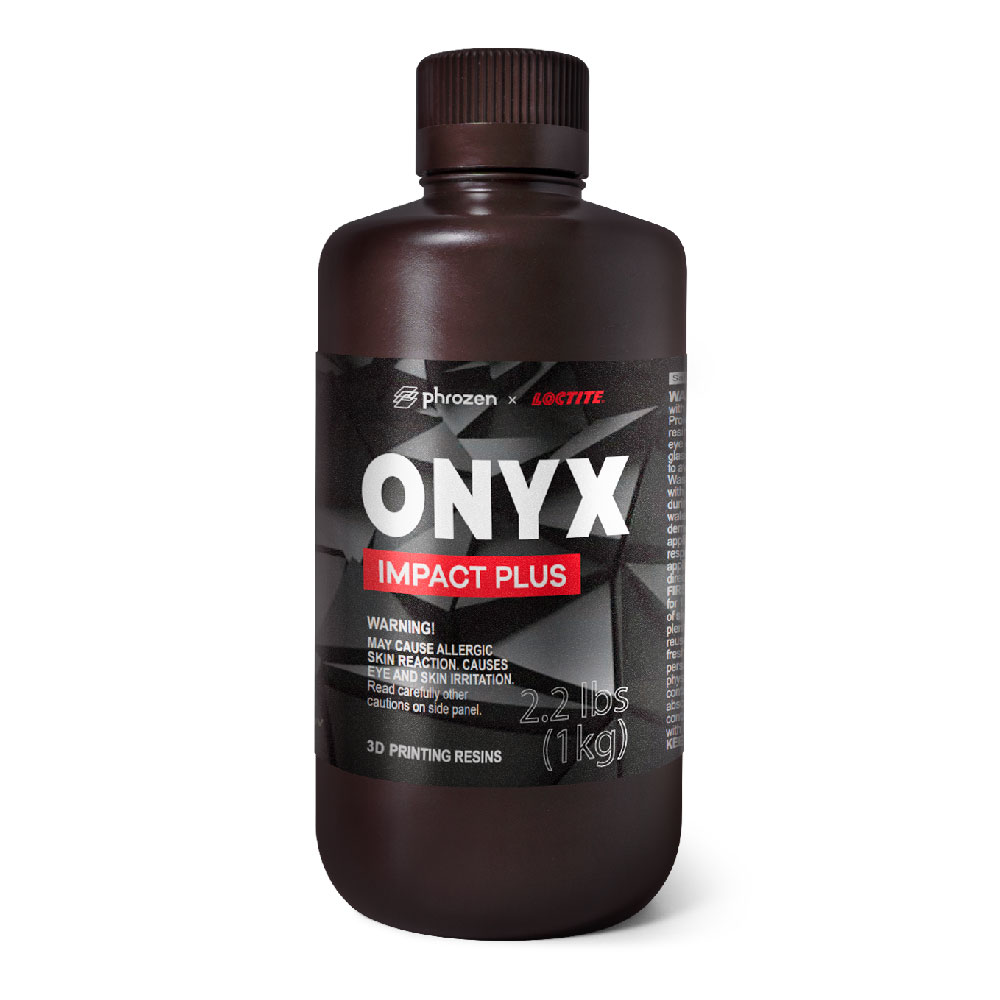

Phrozen ONYX Impact Plus Resin

£125.00 (incl. VAT)

Partnered with Loctite, Phrozen ONYX Impact Plus Resin offers 5x impact-resistant power for heavy-duty daily projects and engineering applications. Bend It, Curl it, and Twist It…ONYX Impact Plus can sustain the weight of a motorcycle!

Please Note: This product has a lead time of 3 working days from placement of order

3D Junkie Onyx Impac Plus Phrozen Loctite

Purchase this product now and earn 104 Tokens!
Description
Reviews
Description

Phrozen ONYX Impact Plus Resin

Partnered with Loctite, Phrozen ONYX Impact Plus Resin offers 5x impact-resistant power for heavy-duty daily projects and engineering applications. Bend It, Curl it, and Twist It…ONYX Impact Plus can sustain the weight of a motorcycle!

What are the Benefits?

  1. Shockproof & Unbreakable. Ultra-high impact resistance to withstand even the most vigorous attacks continuously.
  2. Incredibly Strong Weight Endurance. With extreme weight endurance power, objects printed with Phrozen ONYX Impact Plus can carry loads of more than 150kg.
  3. Bendable and Resilient Material. Highly durable and resilient, Phrozen Onyx Impact Plus will maintain its integrity to always return to its original shape.

Precautions

  • To clean, spray with alcohol and dry it with an air compression gun. DO NOT immerse the model in alcohol for an extended period.
  • Use and preserve resins at room temperature in dark and ventilated conditions.
  • Shake well before each use.
  • After printing, please keep used resins in a closed & opaque bottle. Avoid mixing used resin with a new resin.
  • Keep resin away from kids and direct sunlight exposure.
  • Wear gloves and masks when handling resins. Wash with plenty of water in case of direct contact with skin or eyes.
  • DO NOT dump resin directly. Please cure and treat it as general plastic garbage.
  • After receiving your Phrozen resins, we strongly recommend that you finish them as soon as possible since unopened resins only have a shelf life of one year.
  • Post-processing note: For best results, please allow your print to dry for 40 to 60 minutes after washing, then post-cure for 30 minutes on each side.
  • Minor colour differences between the printed parts and website pictures do not impact the final performances.

Resin Specification

Weight
1kg per bottle
Surface Hardness
72 Shore D
Tensile Stress at Break
37 MPa
Young’s Modulus
1175 ± 47 MPa
Elongation at Break (EAB)
98%
Notched Izod Impact Strength
145 J/m
Shore D Hardness (5s)
72D
Solid Density
1.15 g/cm³
Liquid Density
1.05 g/cm³
Heat Deflection Temperature (HDT) @ 0.45MPa
52℃
*All specifications have been tested in a laboratory. Please note that certain specifications may be subject to change.
*The Shore D Hardness data for this resin is measured with an exposure time of 5 seconds.

Resources / Downloads

Shockproof & Unbreakable
Ultra-high impact resistance that withstands even the most vigorous attacks continuously.
3d junkie phrozen onyx impact plus resin shockproof
Super Strong — Sustain More Than 150 KG
With an extreme weight endurance power, a single 6mm thick board printed with the Phrozen Onyx Impact can sustain the weight of a motorcycle!
Bend It, Curl it, and Twist It
Phrozen ONYX Impact Plus is highly durable and resilient. It’ll maintain its integrity and always return to its original shape.
