Scale your digital production with the Phrozen Sonic LS+, a high-volume, high-precision 3D printing system engineered to meet the demanding requirements of modern dental laboratories. Combining an expansive build plate with ultra-precise 385 nm technology, the LS+ delivers maximum efficiency, speed, and repeatable accuracy in every batch.
Example Production Times
- 20 Aligner models in under 1.5 hours
- 15 Dentures in 3 hours
- 30 Splints in 3 hours
Key Features for High-Volume Dental Production
Maximised Production Capacity: Designed for throughput, the LS+ can print up to 20 full-arch models or up to 35 occlusal splints in a single batch, with a complete run finished in under an hour.
385 nm Wavelength: Utilizes a 385 nm light source which is essential for working with highly accurate, validated dental materials and biocompatible resins, ensuring optimal curing and model stability.
Exceptional Data Accuracy: Guarantees superior quality with ≥95% data accuracy within 50 microns of the original CAD data, providing the fidelity required for complex restorations and guides.
High-Resolution Precision: Achieve fine details and crisp margins with an XY resolution of 34 µm and a Z resolution of 10 µm.

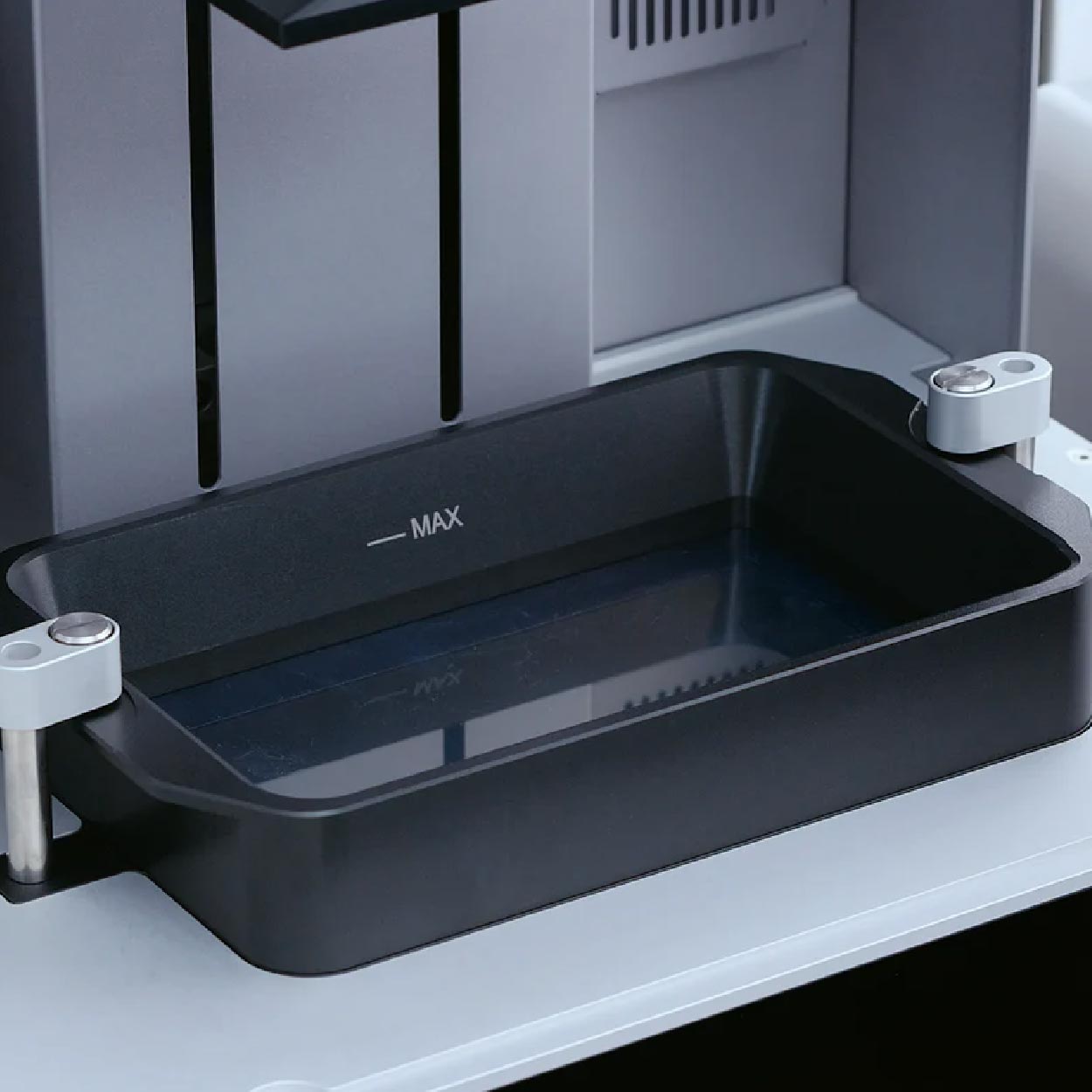

Integrated Thermal Control: Features a built-in heating system in both the resin vat and chamber to maintain an optimal and stable printing environment, enhancing print success rates with temperature-sensitive dental resins.
Usability Features
- 7 inch Touchscreen: Intuitive and easy to operate.
- Connectivity Options: USB, Ethernet, Wi-Fi – For transferring files and remote monitoring & management.
- Extended LCD Lifespan: Long-lasting reliability and less frequent replacement.
- Hassle-free LCD Replacement: Change the LCD screen in under a minute – no tools or disassembly required.
- Validated Resin Settings: Compatible with many third-party resin brands, as well as the Phrozen range of quality resins.
Technical Specifications
Technology: 9.1” Mono LCD
Wavelength: 385 nm
Print Volume (Standard Kit): 20.9 x 13.3 x 17.5 cm
Print Volume (Mini Kit): 16.5 x 7.1 x 17.5 cm
XY Resolution: 34 μm
Z Resolution: 10 μm
Print Speed: Max 100 mm/h
Layer Thickness: 30 μm, 50 μm, 100 μm
Plate Type: Anodized Aluminium
Z-Axis: Dual Linear Rails (Ball Screws)
Heating System: Resin Vat + Chamber
Material System: Open System
Printer Size: 36 x 38 x 55 cm
Connectivity: USB, Wi-Fi, Ethernet
Please Note: Images are for illustrative purposes only. Please review your product selection before purchase.
