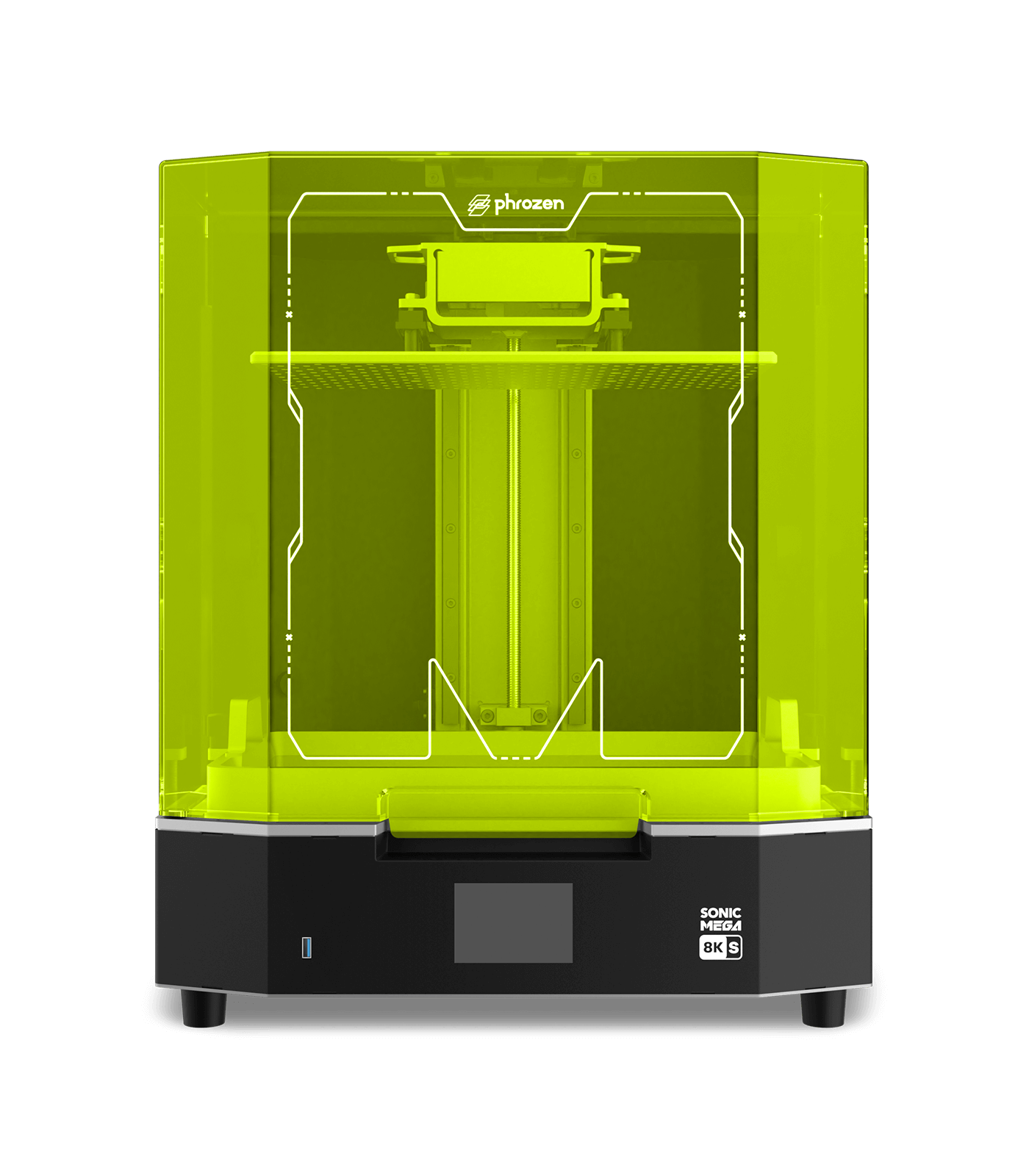

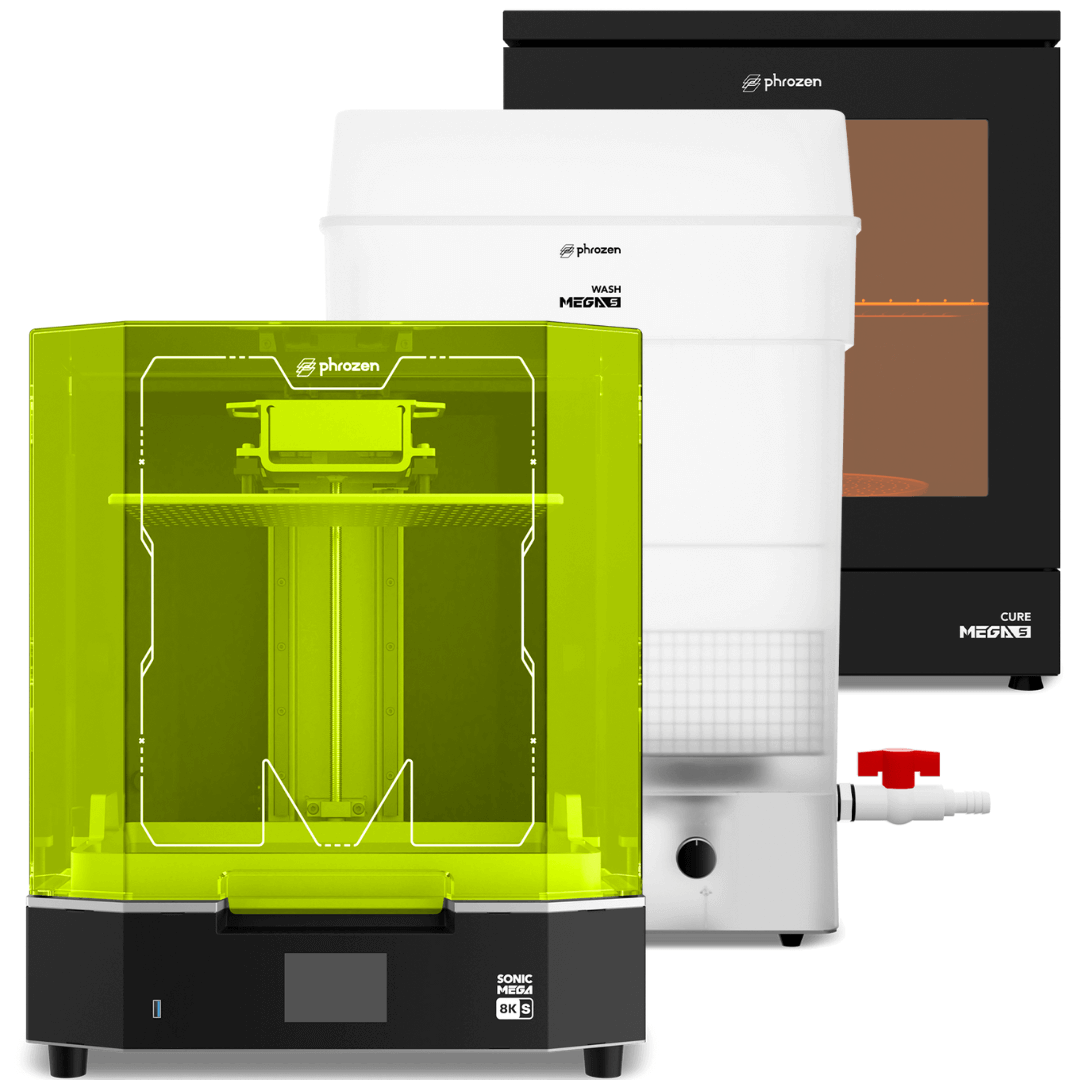

Introducing the Phrozen Sonic Mega 8K S – Discover a World of 3D Printing
Enter the world of 3D printing with Phrozen’s brand new Sonic Mega 8K S. Designed with many of the beloved features inherited from the original Mega 8K, but with a smaller Z height and affordable price point for both small businesses and consumers. Making large-scale projects more accessible to the 3D printing community, without compromising detail and accuracy. Phrozen’s Mega 8K S features the same impressive 33 x 18.5 cm build plate size as the Mega 8K, now paired with a 30 cm build height. Print small models at large volumes or larger models easily. The Mega 8K S comes in a sleek, neon green design enhancing its aesthetic appeal.
Phrozen Sonic Mega 8K S Printing Capabilities
Delivering intricate precision at a scale of 43µm, resulting in 3D models with almost twice the level of intricacy in comparison to other sizeable 3D printers.
15″ Mono-LCD Screen
Presenting a large Mono-LCD printing area, spanning a generous 15 inches in measurement.
10 X More Efficient Production
Given the considerable volume and increased printing speed of the Mega 8K S, there is substantial improvements in mass production efficiency.
Speedy 3D Printing
Attain printing speeds reaching 600 layers per hour by harnessing the capabilities of a state-of-the-art high-speed mainboard in conjunction with ACF film technology.
Resin Drip Hanger
The Mega 8K S comes furnished with an integrated Resin Drip Hanger, designed for suspending the build plate once printing is complete. This inclusion minimises resin waste and simplifies the cleaning procedure. It’s important to note that the maximum height for full-plate models is confined to 100mm.
Lift-Up Lid
Take up minimal space within your studio while ensuring convenient access to your printed creations.
Specifications
- Light Source – 405mm ParaLED Matrix 3.0
- XY Resolution – 43 um
- Layer Thickness – 0.01-0.30 mm
- Max Printing Speed – 400 layers / hr
- Connectivity – Front USB port Design
- Printer Size – 47.2 x 38 x 56.6 cm
- Print Volume – 33 x 18.5 x 30 cm
- Printer Weight – 26 kg
- Resin Vat – Metal Vat with ACF Film
Phrozen Cure Mega S
A 360° transparent turntable to help ensure your models are cured evenly.
- Equipped with dual high-speed fans with 1,700 rotations per minute.
- Comes with a built-in interior light to help you easily see your 3D models’ curing state.
- Adjust your needs to dry and cure large models or lots of smaller ones with a detachable rack.
Specifications
- Machine Size: L39.5 x W37.5 x H48.6 cm
- Max Curing Size: Ø35 x 30 cm
- Fan RPM: 1700 rotations/min
- Timer setting:0–30 min
- Input Voltage: AC100-240V ; 50/60Hz
- Machine Weight: 15 kg
- Max Power Consumption: 70 W

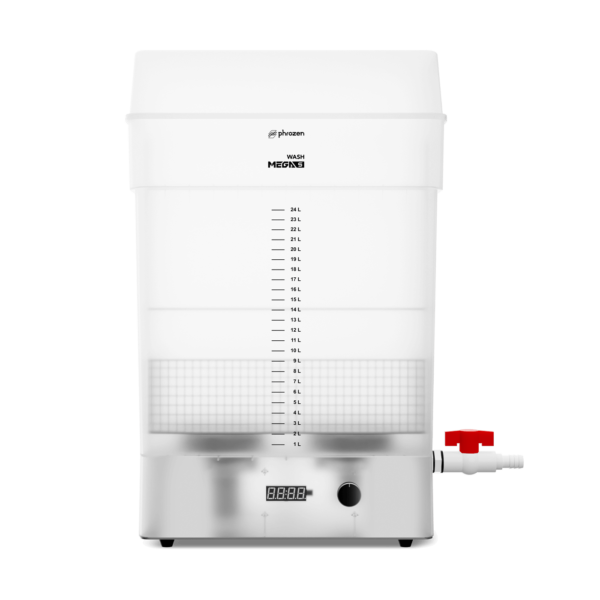

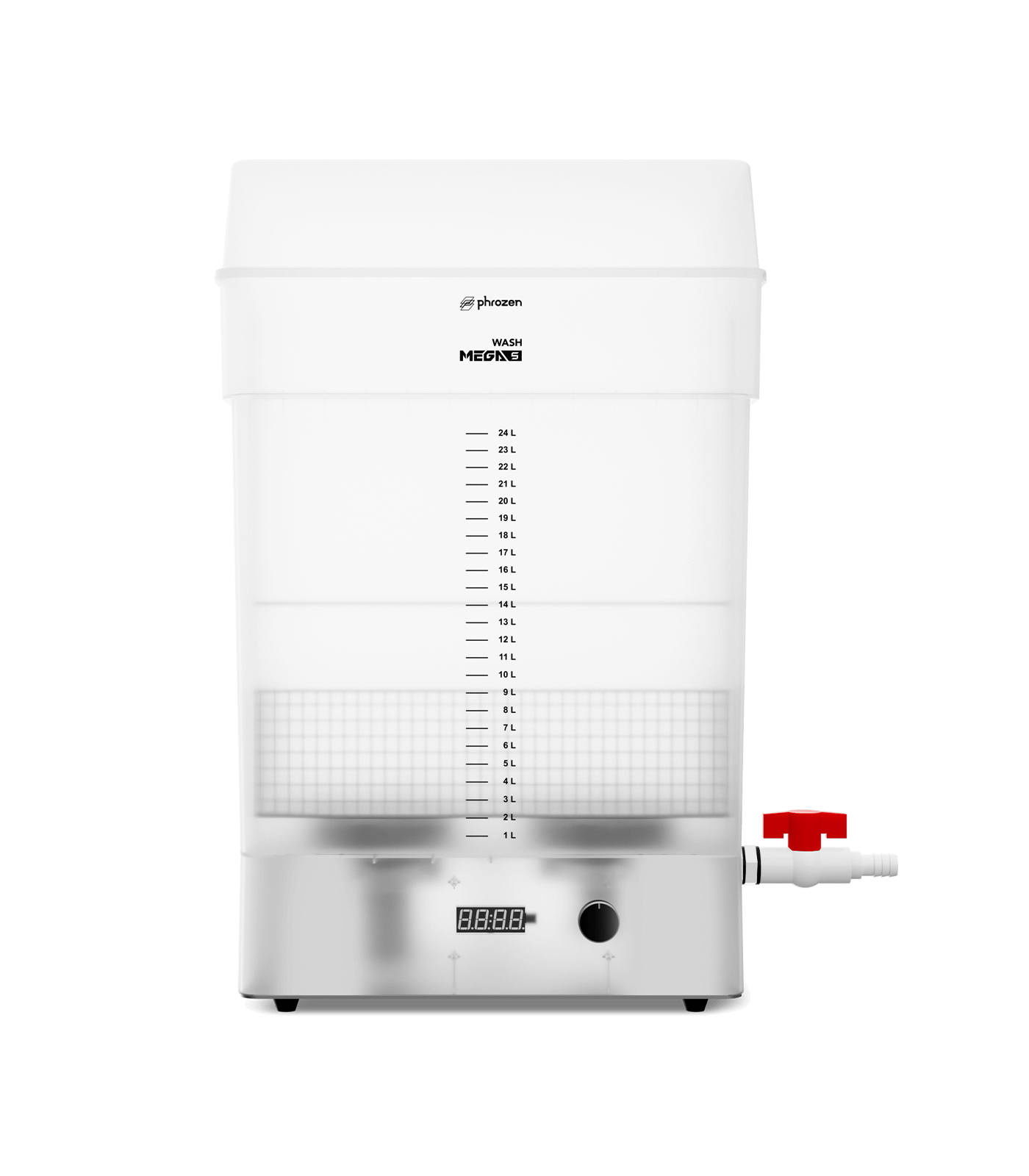

Phrozen Mega Wash S
Wash large models printed on the Mega or many smaller ones at once with a 25L washing capacity.
- Choose from dual-speed settings according to your needs.
- High speed: 300 rpm
- Low speed: 275 rpm
- Equipped with double vortex for optimum cleaning power and a valve for easy disposal of wastewater.
- Wide compatibility with additional racks to support various sizes of building plates: 15” (Mega series), 13.6”, 13.3”, and 12.8”.
- With automatic reverse function, change the vortex direction after 1 minute for an even cleaner result.
Specifications
- Product Size: L41.2 x W26.0 x H62.5 cm
- Inner Capacity: L33.0 x W19.0 x H30.0 cm
- Vortex Speed: High (300 rpm), Low (275 rpm)
- Cleaning Method: Dual-speed double vortex
- Washing Capacity: 25L
- Supported Building Plate: 15” (Mega series), 13.6”, 13.3”, and 12.8”
- Input Voltage: AC100-240V;50/60Hz
- Weight: 8 kg
- Water Timer Settings: 1–30 min
