Phrozen Pump and fill system
Introducing the Phrozen Pump and Fill System, which seamlessly replenishes resin while printing. This system can be easily integrated into your printer, allowing it to automatically identify and refill resin as it approaches the minimum level. Following printing, the pump efficiently recovers any remaining resin, simplifying the cleaning process.
key features of the phrozen pump and fill
Automated resin replenishment: A self-operating system designed to pump and refill resin.
Resin level sensing: Ensures an adequate resin supply for uninterrupted printing.
Resin recovery mechanism: After printing, it effectively pumps back excess resin, improving cleaning efficiency.
User-friendly and simple installation.
Important: The Phrozen Pump and Fill system is exclusively compatible with the Phrozen Sonic Mega 8K S 3D Printer.
how to install
- Remove the side baffle of the Phrozen Sonic Mega 8K S 3D printer and use an Allen wrench to loosen the screws on the machine’s surface panel.
- Thread the inlet hose through the hole positioned on the side of the printer. This hole can be accessed by detaching the previously mentioned baffle.

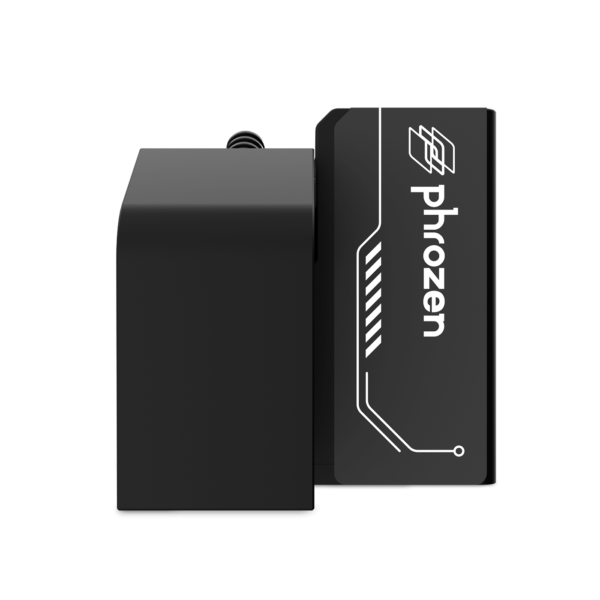

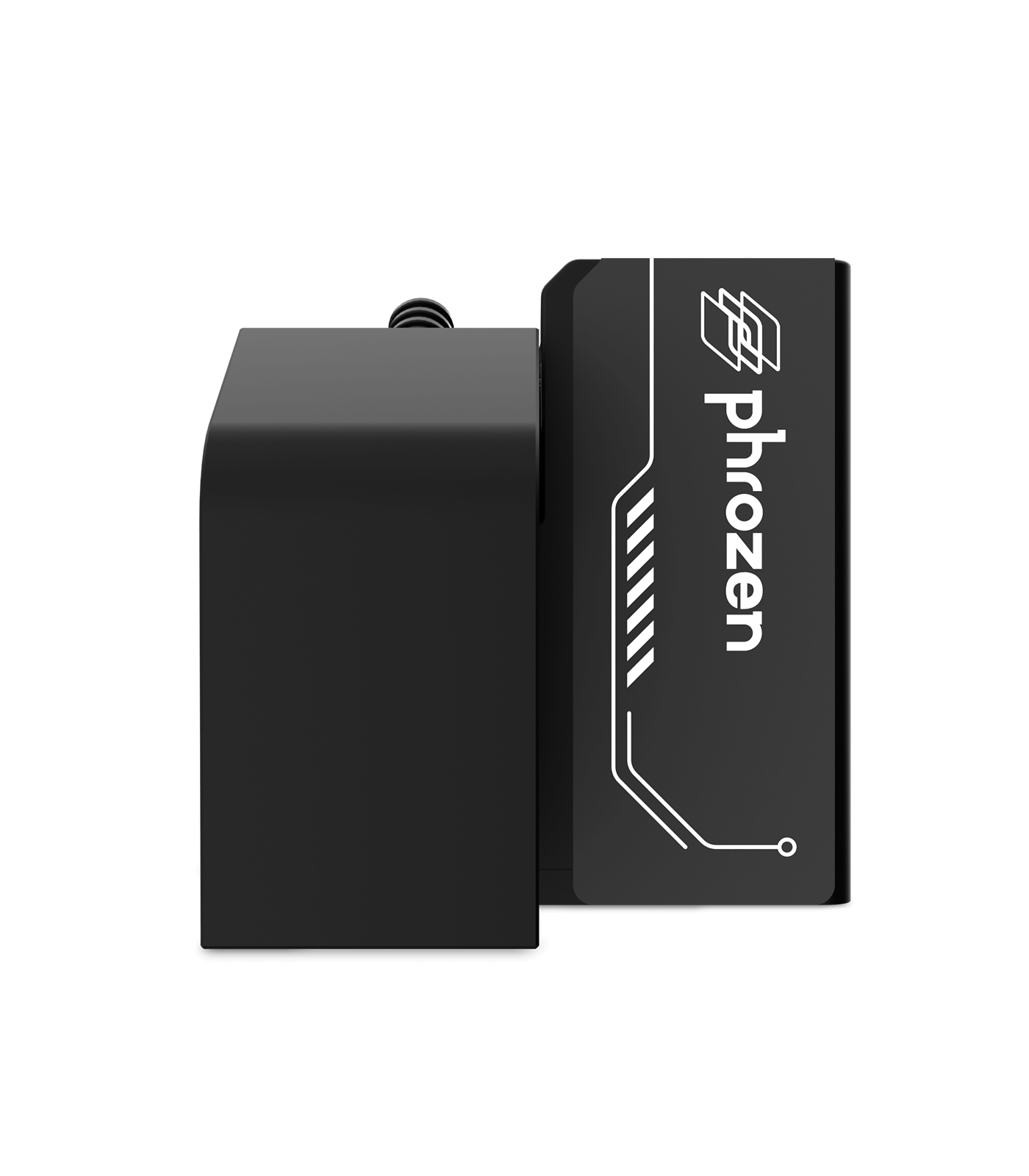

- Secure the inlet pump onto the surface panel of the printer using the screws initially removed. Then, insert both the servo cable and sensor cable into the printer through the surface panel hole. Use the Allen wrench to take off the printer’s side cover.
- Attach the servo cable and sensor cable to the printer’s mainboard. Ensure proper connection to the respective colour-coded slots, then reattach the removed side cover.

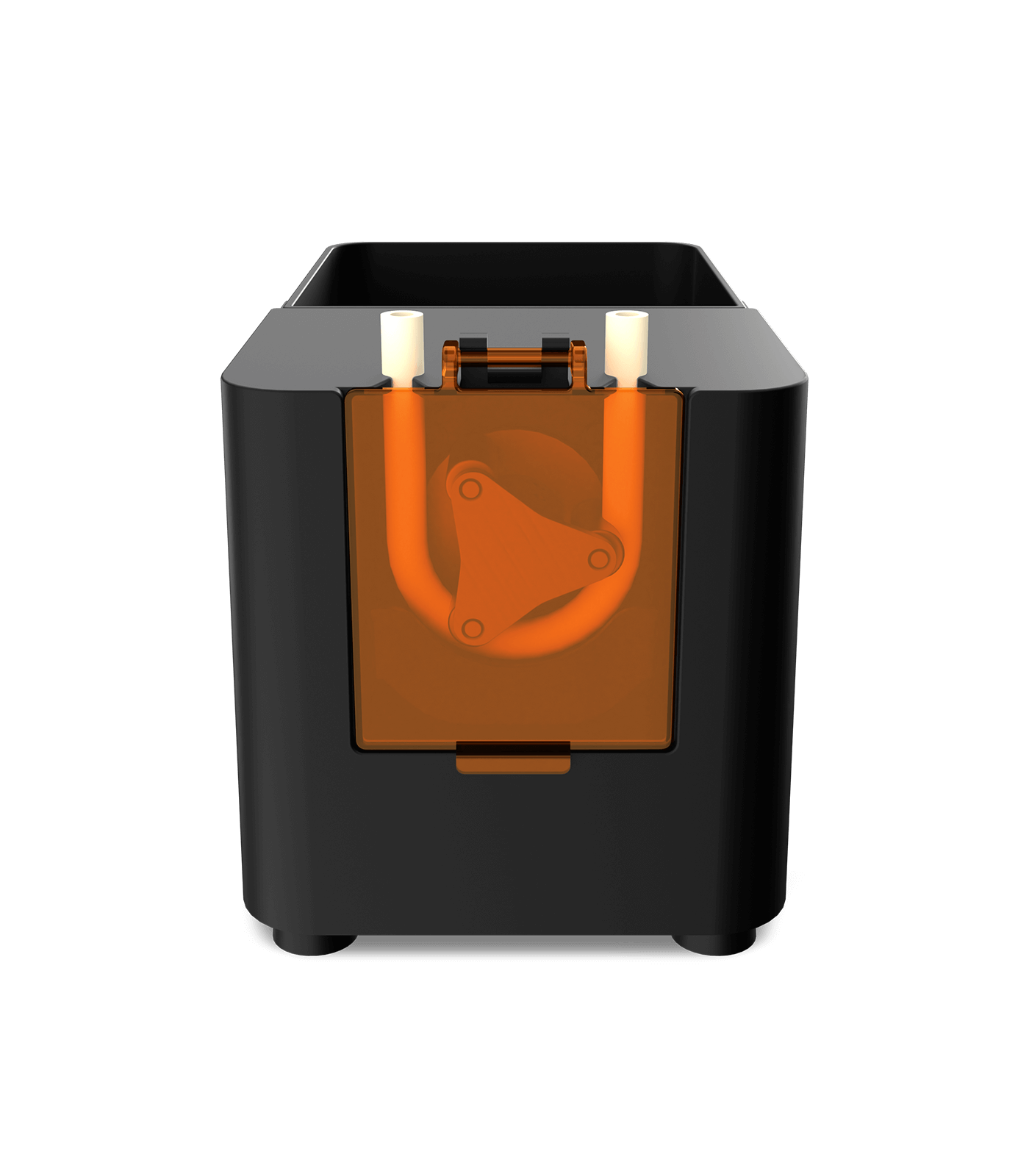

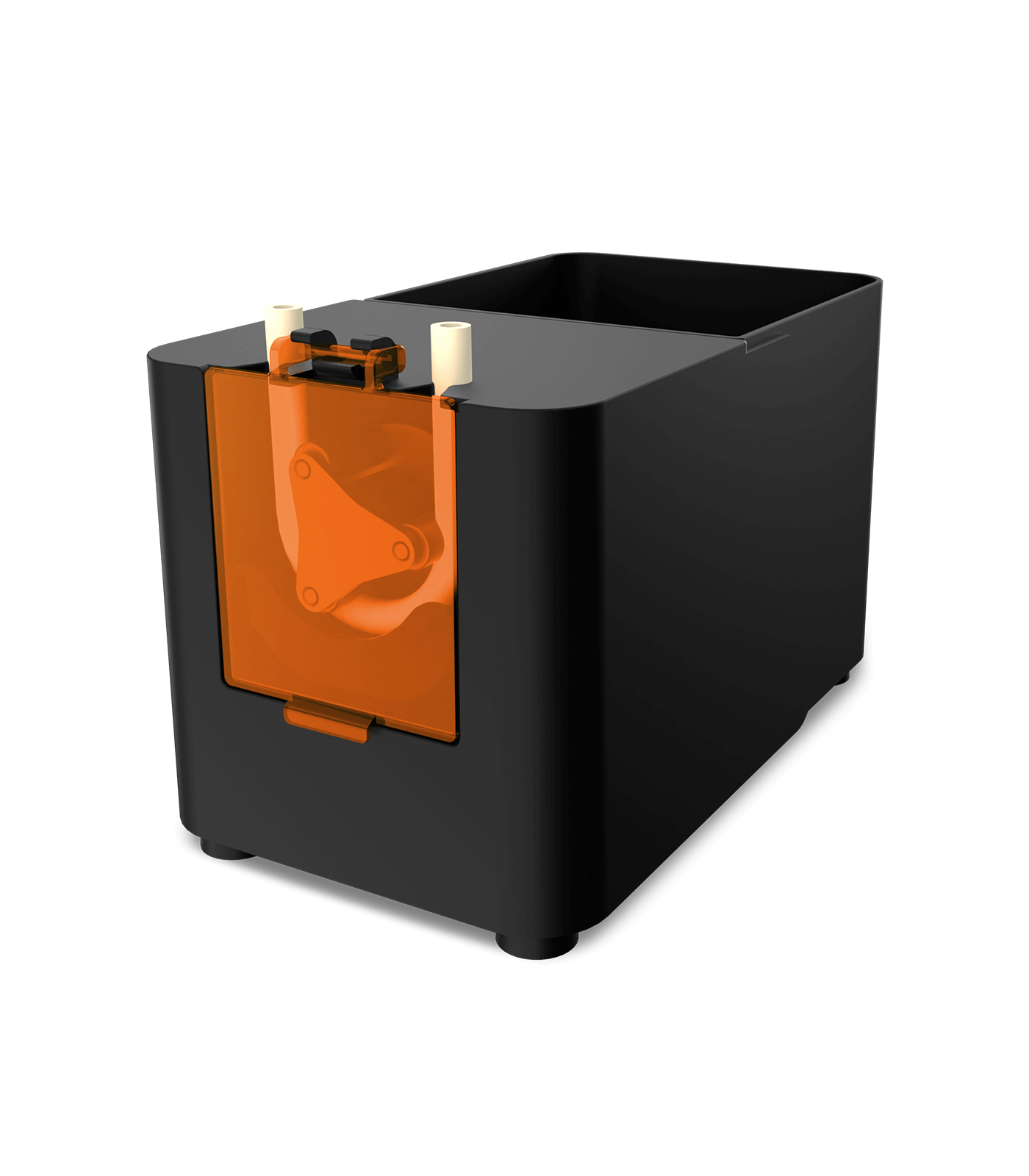

- Insert the pump lid into the resin bottle and position the bottle in the designated slot on the pump case. Once the bottle is secure, insert the bottle cap infusion tube into the peristaltic tube located on the pump case’s left side.
- Connect the two ends of the lid data cable. Fasten one end to the pump lid and the other to the pump case. Then, insert the inlet hose into the peristaltic tube located on the pump case’s right side.
- To complete the installation, connect the pump data cable to the hole on the left rear side of the printer and the slot on the rear side of the pump case.
