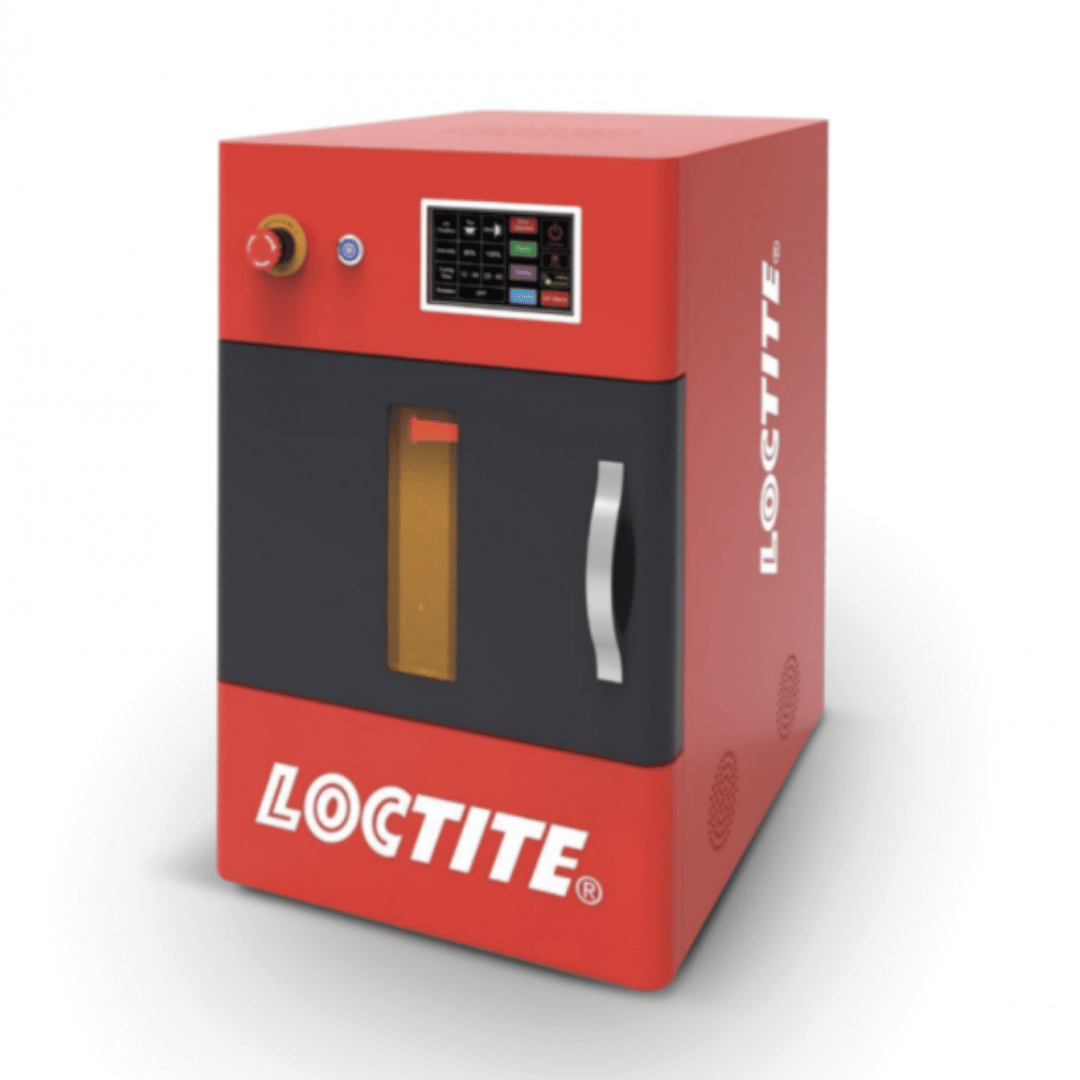

Loctite CL36 Curing Chamber

£6,800.00 (incl. VAT)

The LOCTITE® EQ CL36 LED Curing Chamber is a premium UV curing station designed for 3D parts crafted from Loctite resins. Equipped with 405 nm UV light emitted from multi-directional LEDs and a rotating turntable, it ensures thorough curing. This enclosed system features manual part loading and an intuitive touch screen interface.
Purchase this product now and earn 5,666 Tokens!
Categories:
Brands:: Loctite
Description
Reviews
Description

Loctite CL36 Curing Chamber

The LOCTITE® EQ CL36 LED Curing Chamber is a premium UV curing station designed for 3D parts crafted from Loctite resins. Equipped with 405 nm UV light emitted from multi-directional LEDs and a rotating turntable, it ensures thorough curing. This enclosed system features manual part loading and an intuitive touch screen interface.

What are the Benefits?

  1. Variable Intensity: Adjustable from 10-100% for optimal resin curing.
  2. LED Flood Lights: Dual 200mm x 200mm lights with instant on/off and no infrared emissions.
  3. Rotary Table: Supports up to 2kg
  4. Touch Interface: User-friendly colour display for streamlined settings.
  5. Cure Area: Fits parts up to 300mm x 300mm x 255mm
  6. LED Lifespan: Lasts around 20,000 hours.
  7. Timers: Customizable for each LED flood, optimizing cure based on resin
  8. Consistent Output: Uniform LED intensity for consistent part quality.

Technical Specifications

  1. Overall Dimensions:471 x 372 x 573 (mm)
  2. Cure Chamber Dimensions:304 x 300 x 255 (mm)
  3. Weight: 110lbs / 50kg
  4. Power Supply: 110-240VAC 50/60Hz
  5. LED Wavelength: 405nm
  6. Maximum Intensity: 205mW/cm2 @40mm WD
  7. Recommended Operating Temperature: +10 °C to +40 °C (+50 °F to +104 °F)

3D Printing Precautions

  • Make sure to preserve resin at room temperature. Store in dark and ventilated conditions.
  • After printing, please keep used resins in a closed & opaque bottle. Avoid mixing used resin with new resin.
  • Keep resin away from kids and away from direct sunlight exposure.
  • Wear gloves and masks when using resins. If this chemical contacts the skin or eye, wash with plenty of water.
  • DO NOT dump resin. Please cure it and treat it as general plastic garbage.
*All specifications have been tested in a laboratory. Please note that certain specifications may be subject to change.

Resources / Downloads

Manual
