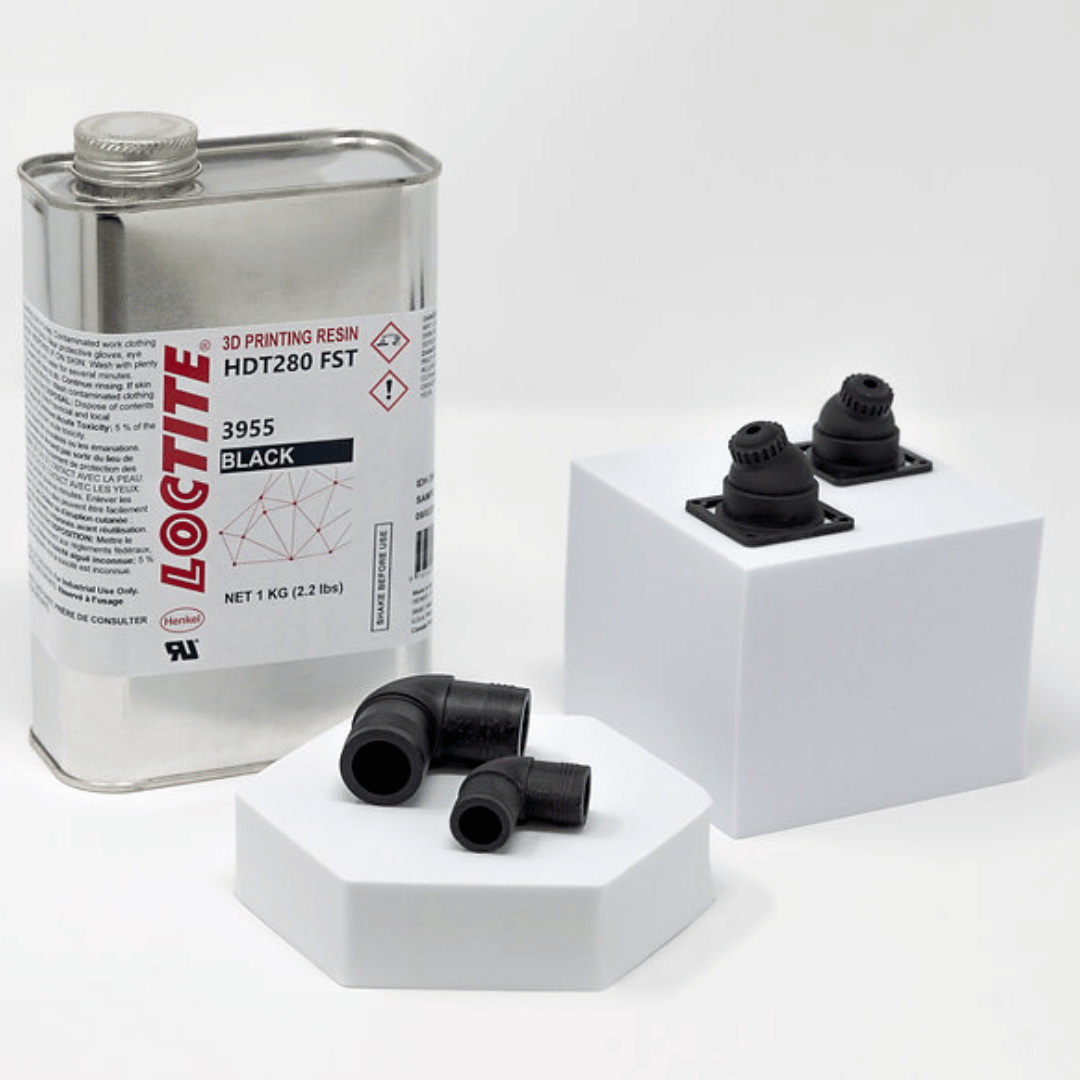

Loctite 3D 3955 Resin
LOCTITE 3D 3955 is a non-halogenated material that delivers superior performance and high modulus, boasting impressive flexural and tensile properties. This material meets the UL94 V-0 standards for flammability and fulfils FST criteria (AITM2-0002, AITM2-0007, AITM3-0005), making it resilient in extreme conditions with minimal deformation due to its high Heat Deflection Temperature (HDT).
Key Mechanical Properties
- Shore Hardness D: 82
- Flexural Modulus (MPa): 4,600
- Elongation at Break (%): 2
- Young’s Modulus (MPa): 3,600
- Tensile Stress at Break (MPa): 67
Key Benefits
- Fire Safety Material
- Halogen Free
- Excellent Flexural and Tensile Physical Properties
Ideal Applications
- HVAC Components for Aircraft
- Clips and Plugs for Control Systems/Cabinets

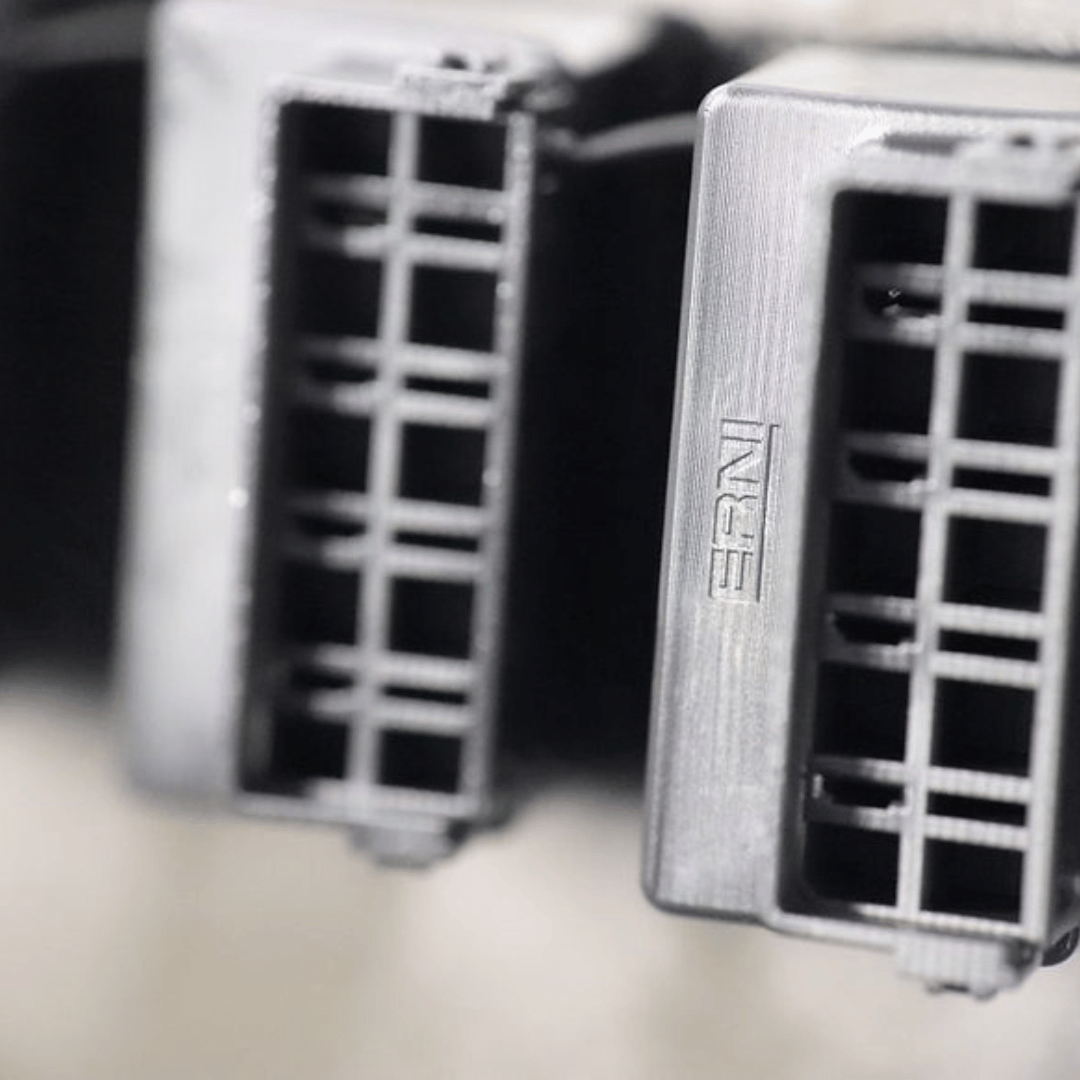

- Connectors, Electronic Housings
Pre-Melt Requirements
LOCTITE 3D 3955 BK requires pre-melt of material before use. It is recommended to heat it in the provided 1kg container at 80°C for 4 hours or until the resin is fully liquified in the container. Shake container before pouring material into tray.
Pre-Melt material should be kept at 60°C to maintain fluidity and should be used within 2 weeks of melting for best results.
Important Information
- User must wear suitable respiratory protection during cleaning process.
- Note: Glycol Ether TPM can be used in lieu of Loctite 3D Cleaner T
- Glycol Ether TPM oxidizes at elevated temperatures over time. Consult the MSDS of TPM and contact the supplier for further guidance. Use appropriate antioxidants and regularly measure peroxide concentration.
