The Elegoo OrangeStorm Giga is no ordinary 3D printer. With its huge build volume of 800 x 800 x 1000 mm, it exceeds all dimensions that one is used to from home 3D printers. This colossus forms a bridge between hobby and professional use, and opens up completely new possibilities for ambitious makers.
Features at a glance
– Robust construction in industrial quality.
– Build volume of 800 x 800 x 1000 mm.
– Heated bed with 4 independent PEI high temperature platforms.
– Automatic detection of the platform used and its individual heating.
– 64-bit quad-core high-performance processor for high-speed printing of up to 300 mm/s.
– Optional multi-nozzle printing with the possibility of attaching three additional print heads for multi-colour printing.
– Improved nozzle design for a printing temperature of max. 300 °C.
– Automatic PID calibration function for precise control of the nozzle temperature.
– Automatic one-click levelling and a contactless high-precision sensor ensure the flatness of the platforms.
– Special cable rails for durable cables.
– Filament detection and power loss recovery.

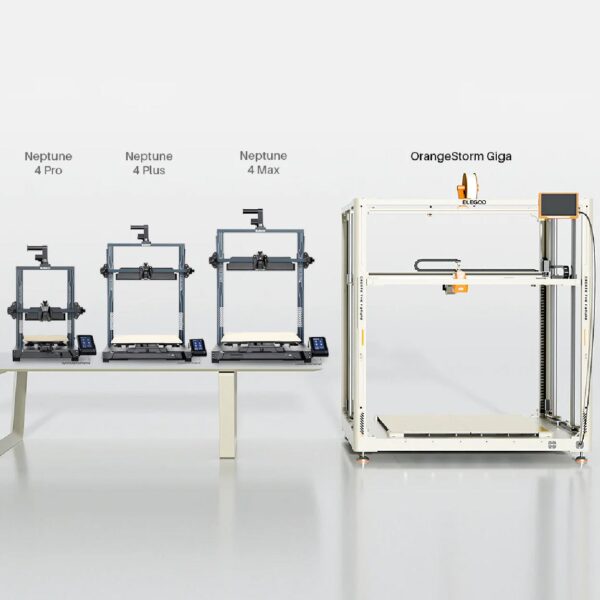

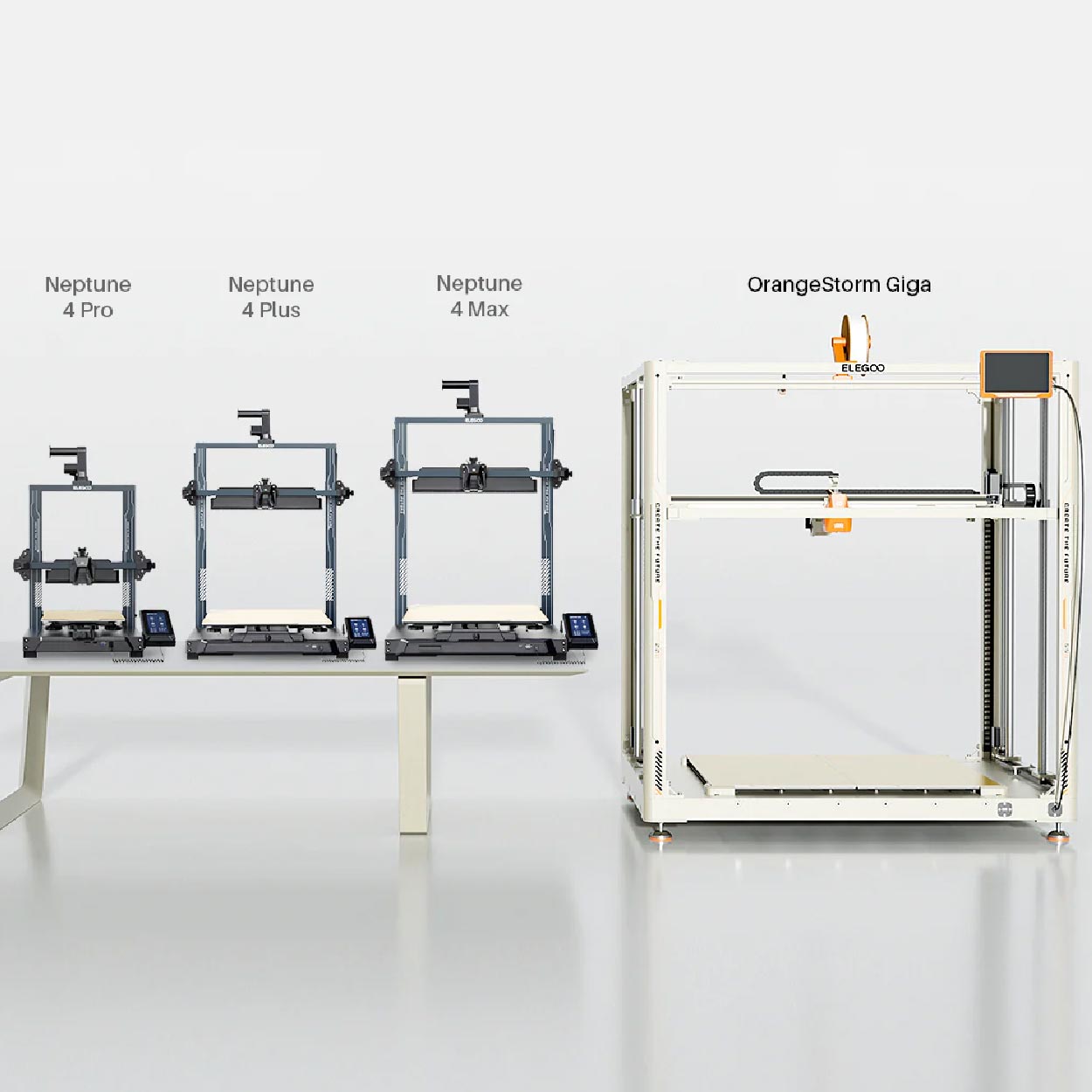

A giant among FDM printers

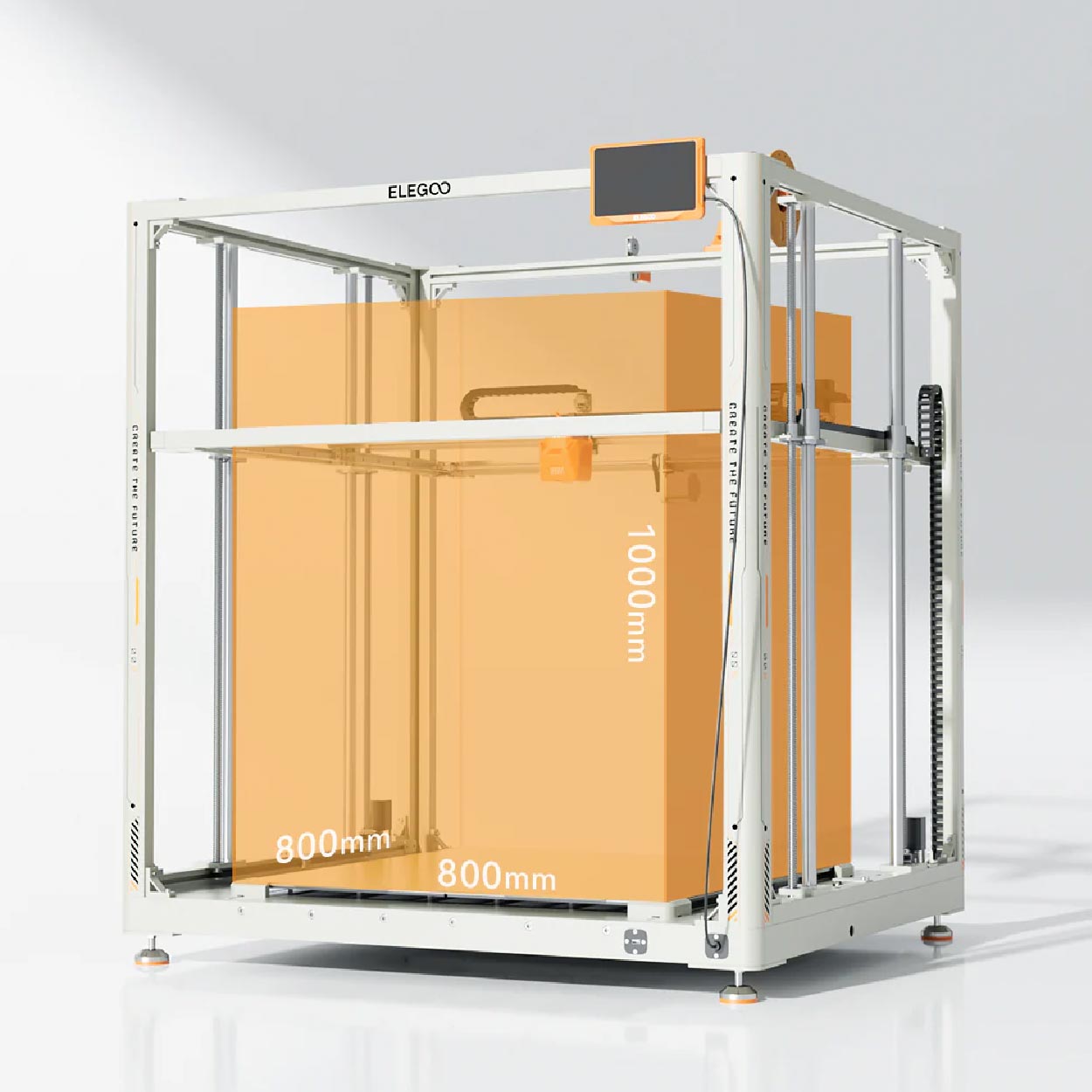

The OrangeStorm Giga impresses with its gigantic build volume of an incredible 800 x 800 x 1000 mm. The industrial-grade 3D printer offers almost unlimited possibilities for carrying out huge projects. No need to print large-format models in several passes.
Robust construction

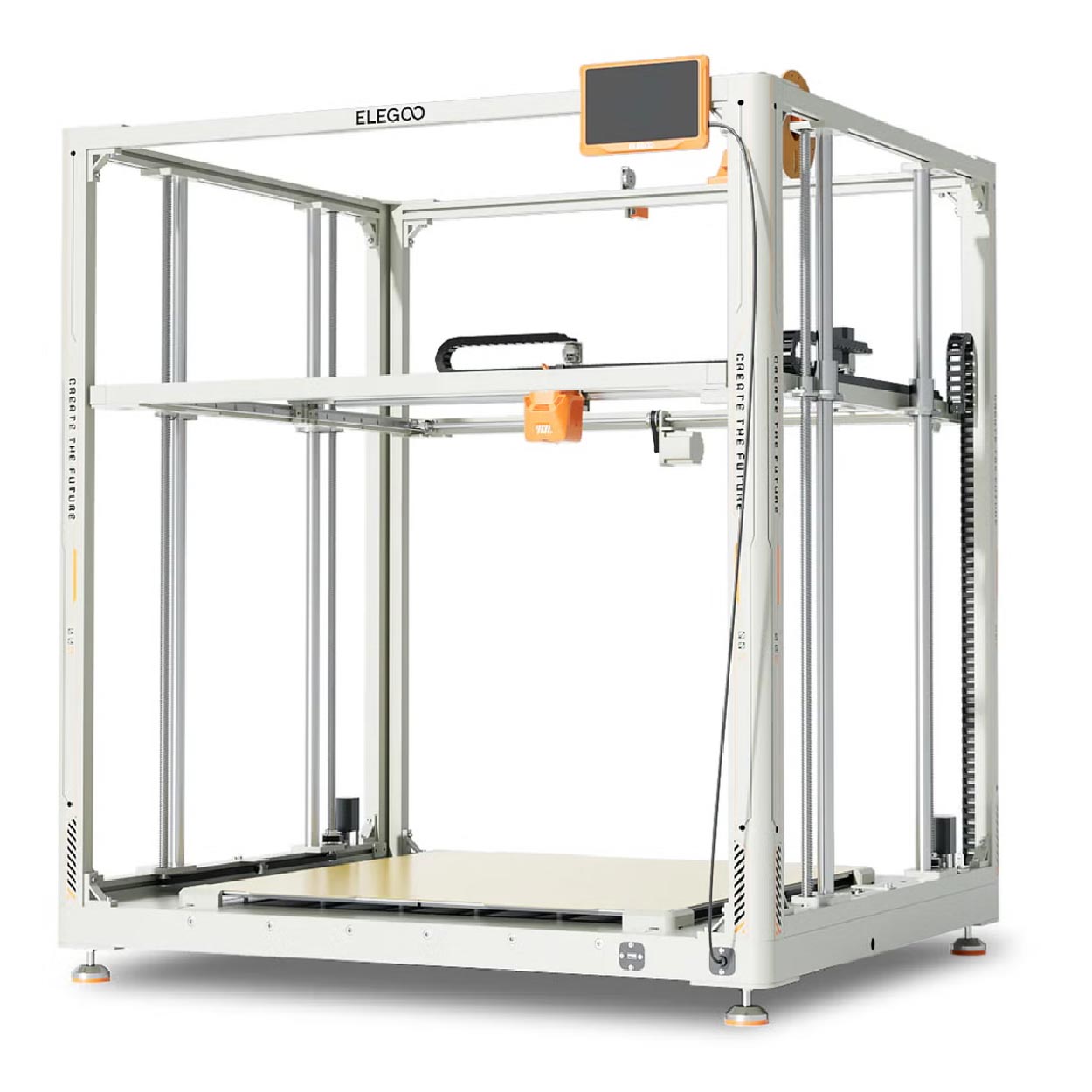

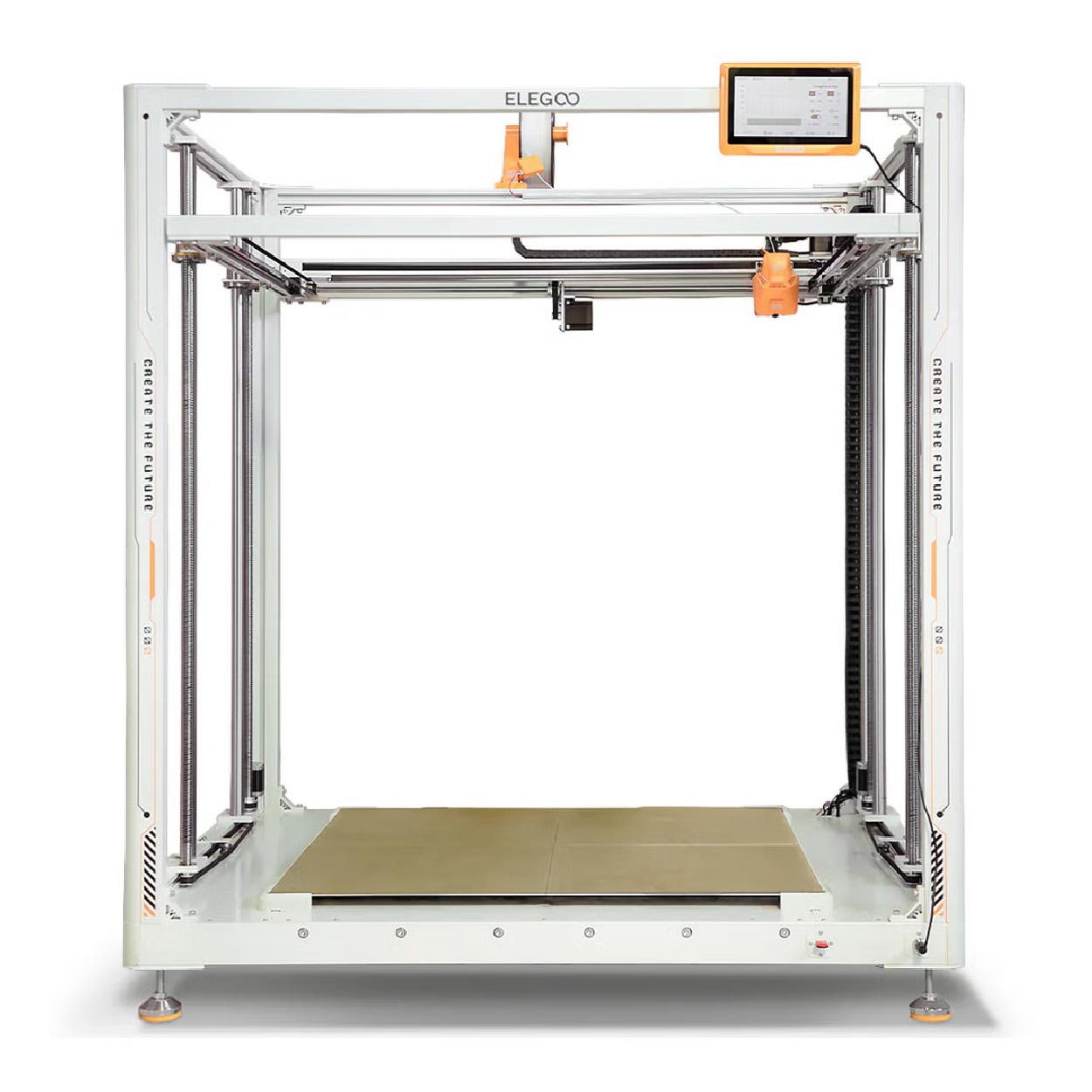

The FDM printer is designed for demanding use and impresses with its sturdy construction. The Elegoo OrangeStorm Giga has an elegant and durable integrated housing. The X and Y axes are linear guides that effectively improve printing stability and extend the service life. The Z-axis has a robust guide rod that ensures smooth operation and precise levelling. The printer itself is equipped with round carbon bases with anti-slip rubber pads.
Bed with four independently heated platforms
The OrangeStorm Giga’s heatbed consists of four independent magnetic PEI build plates. These high-temperature platforms (each measuring 410 x 410 mm) are designed for a maximum temperature of 90 °C and can be heated simultaneously. They reach a temperature of 90 °C over the entire surface within approximately 17 minutes (at an ambient temperature of 25 °C).
Special sensors enable the platform on which the model is located to be automatically detected in order to heat it. However the individual build plates can also be heated and controlled manually and independently of one another as required.
Rapid speeds
Equipped with a 64-bit quad-core high-performance processor (SOC RK3328) with a clock speed of 1.5 GHz. The gigantic printer achieves a printing speed 6 times higher than other 3D printers of this size:
– Max. printing speed of 300 mm/s.
– Recommended printing speed of 150 mm/s.
– Multi-nozzle printing.

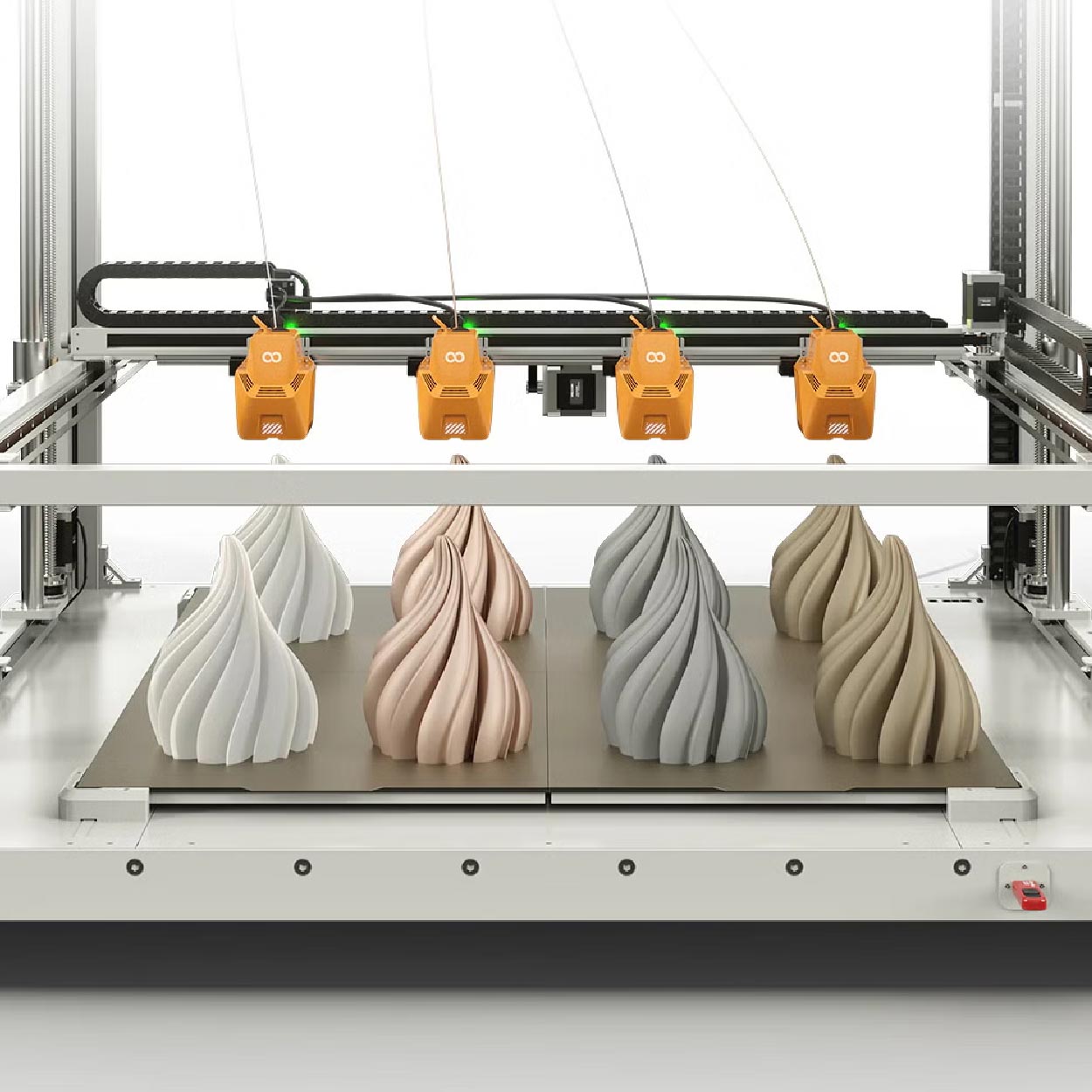

The printer allows you to attach three additional print heads to the X-axis to print four models at the same time. You can use different coloured filaments of the same material to bring your printed objects to life with colour.
Improved nozzle design
The printer is equipped with an optimised nozzle designed for temperatures of up to 300 °C. The high-temperature nozzle made of chrome-zirconium-copper has a proximal double gear extrusion structure and a titanium alloy heat pipe, and has been upgraded with a 60 watt ceramic heating pad.
Powerful double-sided fans
The OrangeStorm Giga is equipped with robust double-sided cooling fans: 2 x 5015 ball fans, 1 x 4010 ball axial fan. These have an intelligent control function that automatically turns them off after the printing process is completed. This saves energy, reduces noise and extends the service life. This can achieve more uniform extrusion and higher printing precision.
By integrating an automatic PID calibration function, the nozzle temperature can be precisely controlled. To generate even better print quality, a built-in acceleration sensor automatically calibrates the parameters for resonance compensation.
Additional features
– Automatic one-click levelling and a non-contact high-precision sensor collect platform data at 121 points to ensure that it is level.
– The printer’s cables are stored in special cable rails. This protects them from external influences such as dust or contamination, as well as from wear and tear and breakage.
– Automatic filament detection and power loss recovery.
– 7 inch HD capacitive touchscreen.
– User-friendly knob design.
– Practical spool holder made of sheet steel for spools up to 5 kg.

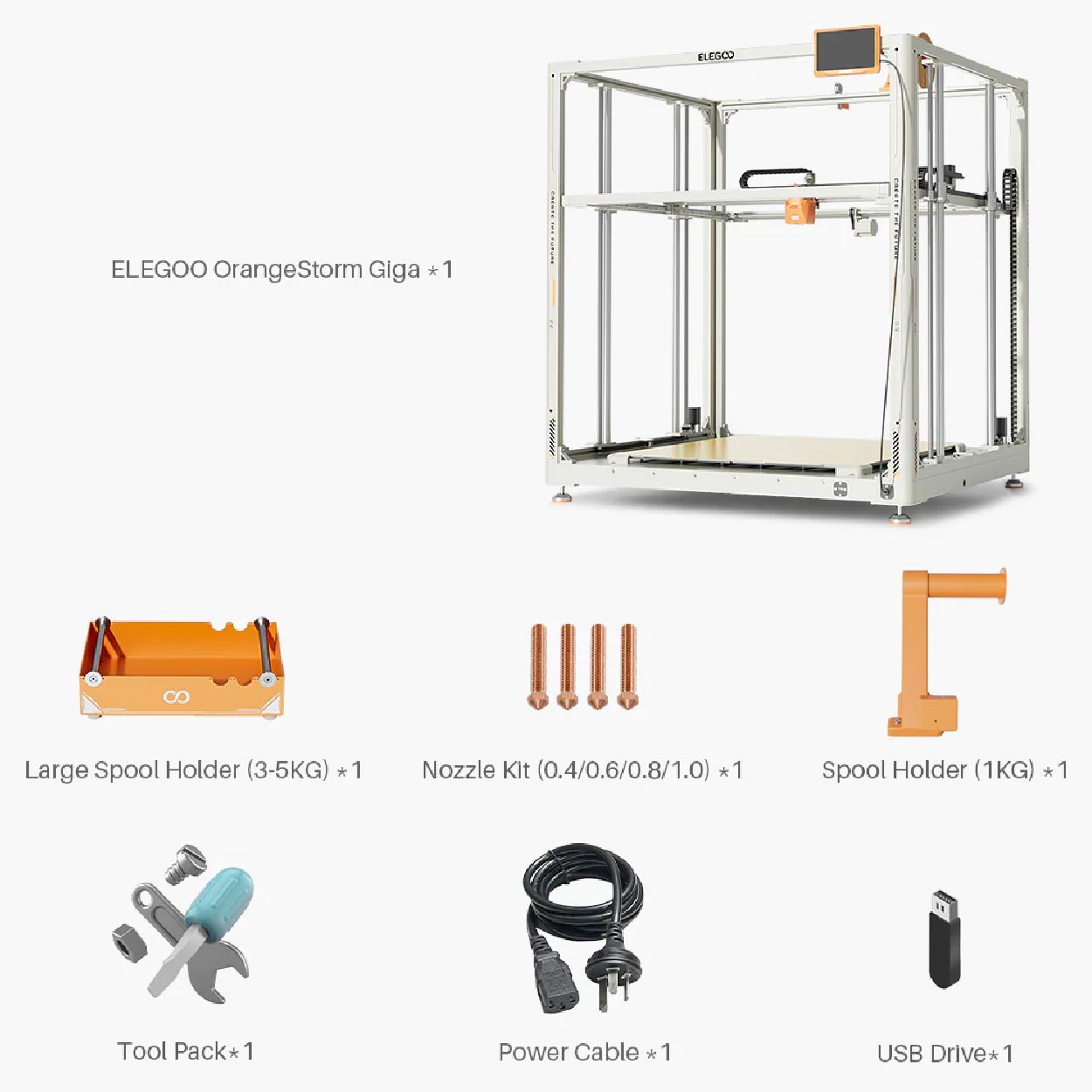

Included in delivery:
– 1 x OrangeStorm Giga 3D printer
– 1 x print head
– 1 x touch screen
– 2 x levelling plate
– 1 x Spool Holder
– 1 x Spool Holder Arm
– 2 x Filament Breakage Detectors
– 2 x clips for cable rails on the Z-axis
– 2 x End Stop for the Z-axis
– 1 x Filament Guide Assembly
– 1 x freestanding spool holder for filaments up to 5 kg
– 1 x power cable
– 1 x levelling card
– 1 x lubricating grease
– 8 x corner brackets for profiles
– Tools
– Fasteners
– Manual
Please Note: Images are for illustrative purposes only. Please review your product selection before purchase.
