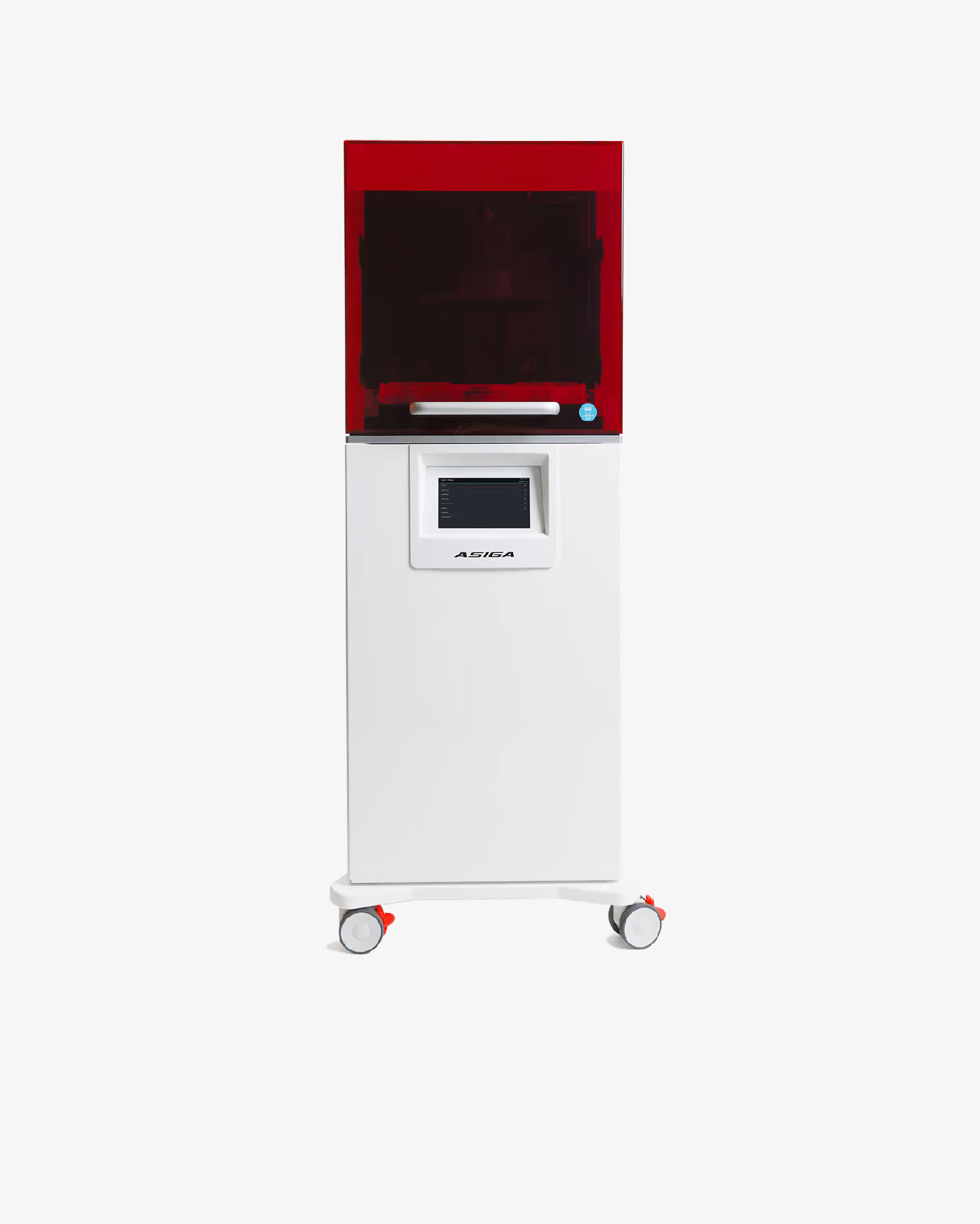

Asiga Pro 4K (UV)
£23,600.00 (incl. VAT)
The Asiga Pro 4K is the no.1 choice for dental labs in the UK. With unrivalled 3D print monitoring technologies, the Pro 4K is specially engineered to deliver production continuity in any environment. Suitable for many other applications such as, jewellery, manufacturing, miniatures, and medical applications, the Asiga Pro 4K blends high precision and volume. Choose from 3 models (specification can be found below).
Estimated Lead Time: 10 days
Description
Reviews
Description
Asiga Pro 4K (UV)
The Asiga Pro 4K is the no.1 choice for dental labs in the UK. With unrivalled 3D print monitoring technologies, the Pro 4K is specially engineered to deliver production continuity in any environment. Suitable for many other applications such as, jewellery, manufacturing, miniatures, and medical applications, the Asiga Pro 4K blends high precision and volume. Choose from 3 models (4K45, 4K65 or 4K80).
Key Features
- Asiga SPS Technology – Providing platform positioning feedback ensuring your build platform is where it needs to be for every layer. Z height precision guaranteed.
- Automatic LED Power Adjustment – Asiga’s internal radiometer provides real-time feedback and automatic cure time adjustment based on actual LED power. Precise layer curing for every layer.
- Industrial Grade High-Power LEDs – The PRO 4K is available with either 365nm, 385nm or 405nm Industrial-grade LEDs. 385nm UV LED recommended for most applications for precise layer curing and ability to process water-clear materials.
Crystal Clear 4K Imaging
Asiga 4K mode uses pixel shifting technology to reduce pixel size which enhances surface smoothness and detail definition. This is Asiga’s default printing mode but you can switch to native mode if required.
No Calibration Between Material Changes
Change your printing material in seconds without the need for calibration. With Asiga’s multi-range feature in Composer you can change materials during a print for a multi-material component.
Applications
- Dentistry
- Hearing
- Jewellery
- Manufacturing
- Miniatures
- Medical
What's Included?
- Pro 4K Printer
- Calibration Toolkit
- Asiga material of your choice and build tray
- Asiga Flash curing chamber
- Composer software
Printer Specification
Build Volume (X,Y,Z)
4K45 (122 × 69 × 200mm)
4K65 (176 × 99 × 200mm)
4K80 (217 × 122 × 200mm)
4K65 (176 × 99 × 200mm)
4K80 (217 × 122 × 200mm)
Pixel Size - 4K mode
4K45 (32µm)
4K65 (46µm)
4K80 (56µm)
4K65 (46µm)
4K80 (56µm)
Pixel Size - Native mode
4K45 (45µm)
4K65 (65µm)
4K80 (80µm)
4K65 (65µm)
4K80 (80µm)
Technology
DLP
LED Wavelength
385nm or 405nm (high power LEDs)
Material Compatibility
Asiga materials, 100% Open Material System — use any suitable third party material.
Software
Asiga Composer software. Lifetime updates included.
File Inputs
STL, SLC, PLY, STM (Asiga Stomp file format)
Network Compatibility
Wifi, Wireless Direct, Ethernet
Power Requirements
90-264VAC, 50/60Hz, 600Watts, (100V - 6Amp Max. 240V - 2.5Amp)
System Sizing
465 × 540 × 1345mm / 140 kg
Packed Sizing
900 × 700 × 1540mm / 205 kg
Warranty
12 months manufacturer's warranty.
Technical Support
Unlimited lifetime technical support included.
Bundle Includes
3D printer, Composer software, 1kg Asiga material, 2L build tray, Asiga Flash post-curing chamber, calibration toolkit.
*All specifications have been tested in a laboratory. Please note that certain specifications may be subject to change.
Powerful Build Preparation Software
Asiga Composer provides an intuitive interface for you to manage production on your Asiga 3D printer. Automatic set-up features including automatic part placement, automatic supports, full access to advanced settings where required. Enjoy unlimited installs and all future software updates.
3D Print Precision With 385nm UV LEDs
Asiga’s 385nm UV LEDs accelerate material curing to achieve super-fine detailing and the ability to process water-clear materials. For all industries Asiga recommend 385nm LED’s.
Unrestricted Layer Thickness
Specify the optimal layer thickness for the object being printed. Asiga provide default options but with the added bonus for you to specify a value in 1 micron increments. In fact, you can print sections of your build at different layer thicknesses in different materials using Multi-range in Composer.
On-Board Heater
Finely control the temperature inside the print chamber for temperature critical materials or to increase printing speeds by reducing material viscosity. Temperature settings are adjustable so you can optimise to your 3D print environment.
